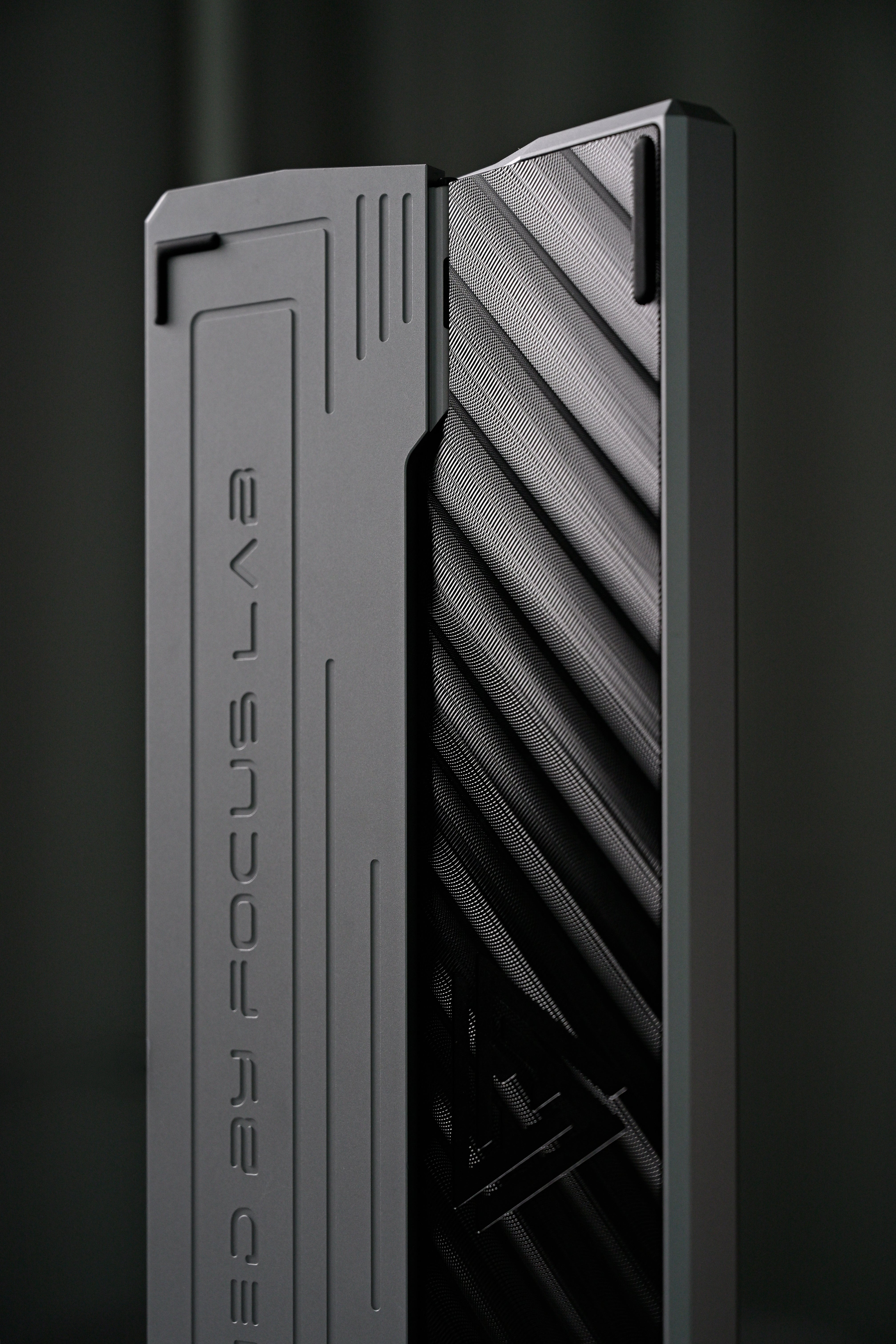

Focus Lab CTRL 87

2026 KEYBOARD DESIGN FOCUS LAB

HELLO This is FOCUS LAB.

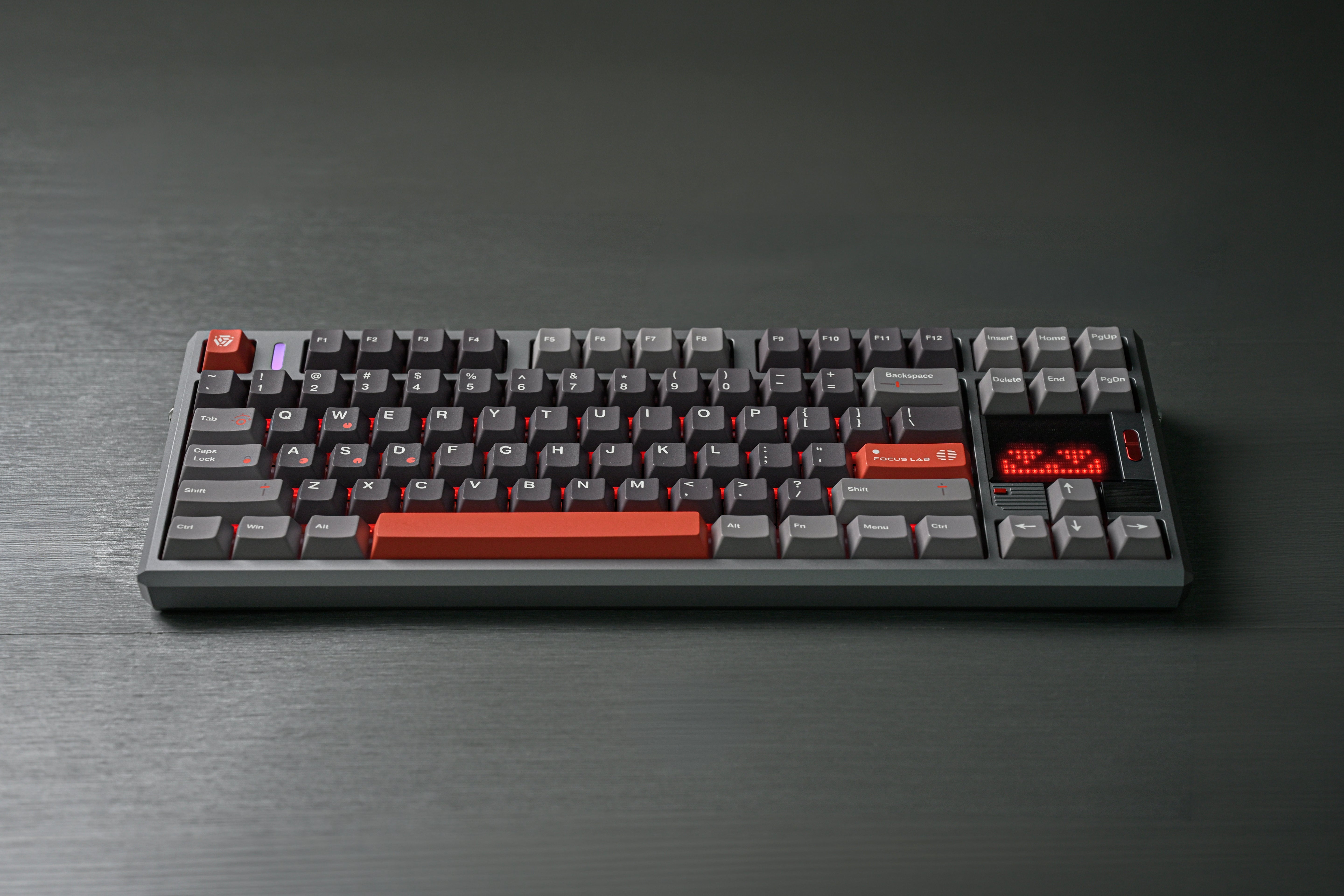

With new ideas in mind, we have completed the 「CTRL87」 keyboard.

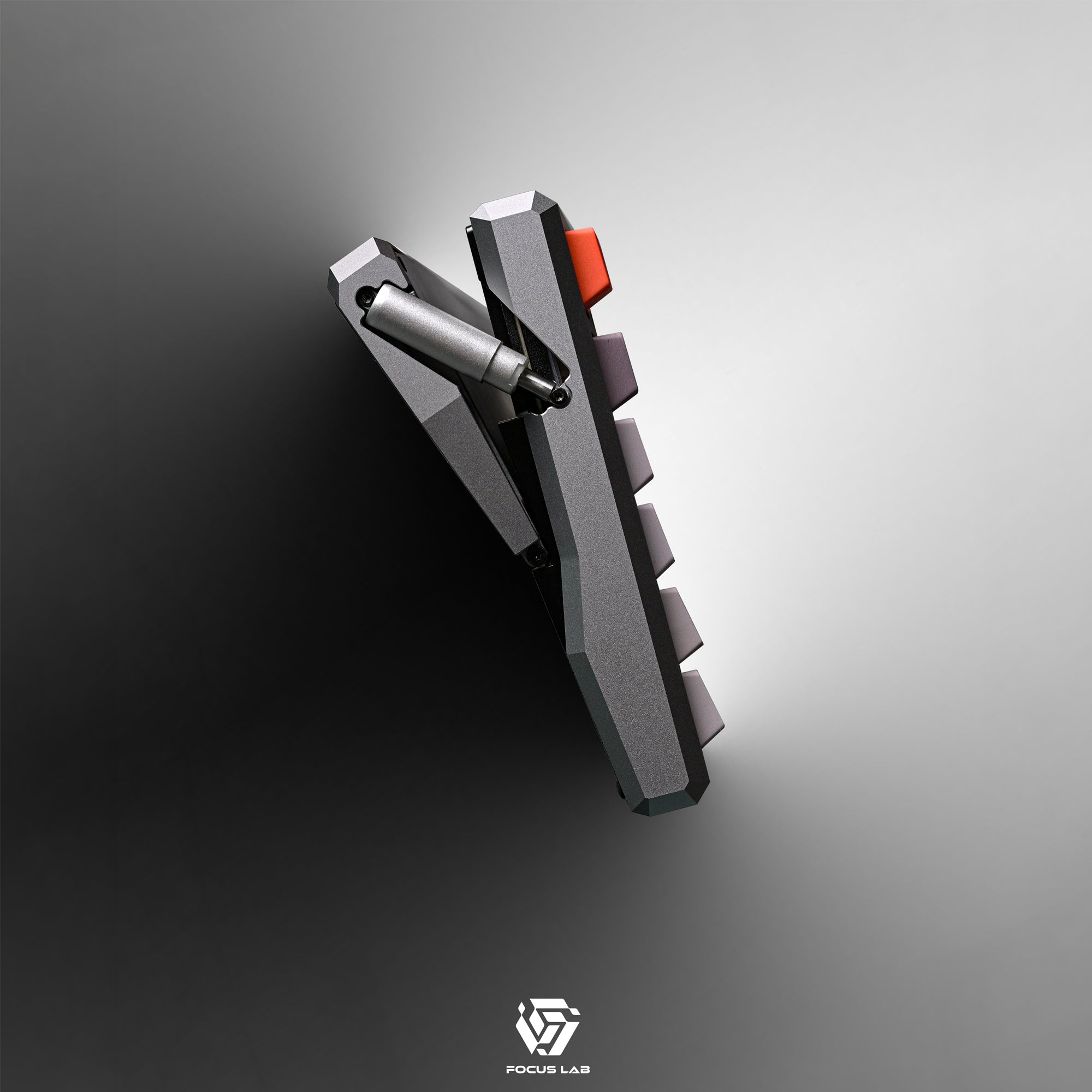

Continuing our signature lever mechanism design, we have also incorporated a new retro-style industrial aesthetic.

An 8-BIT toy hidden inside the keyboard

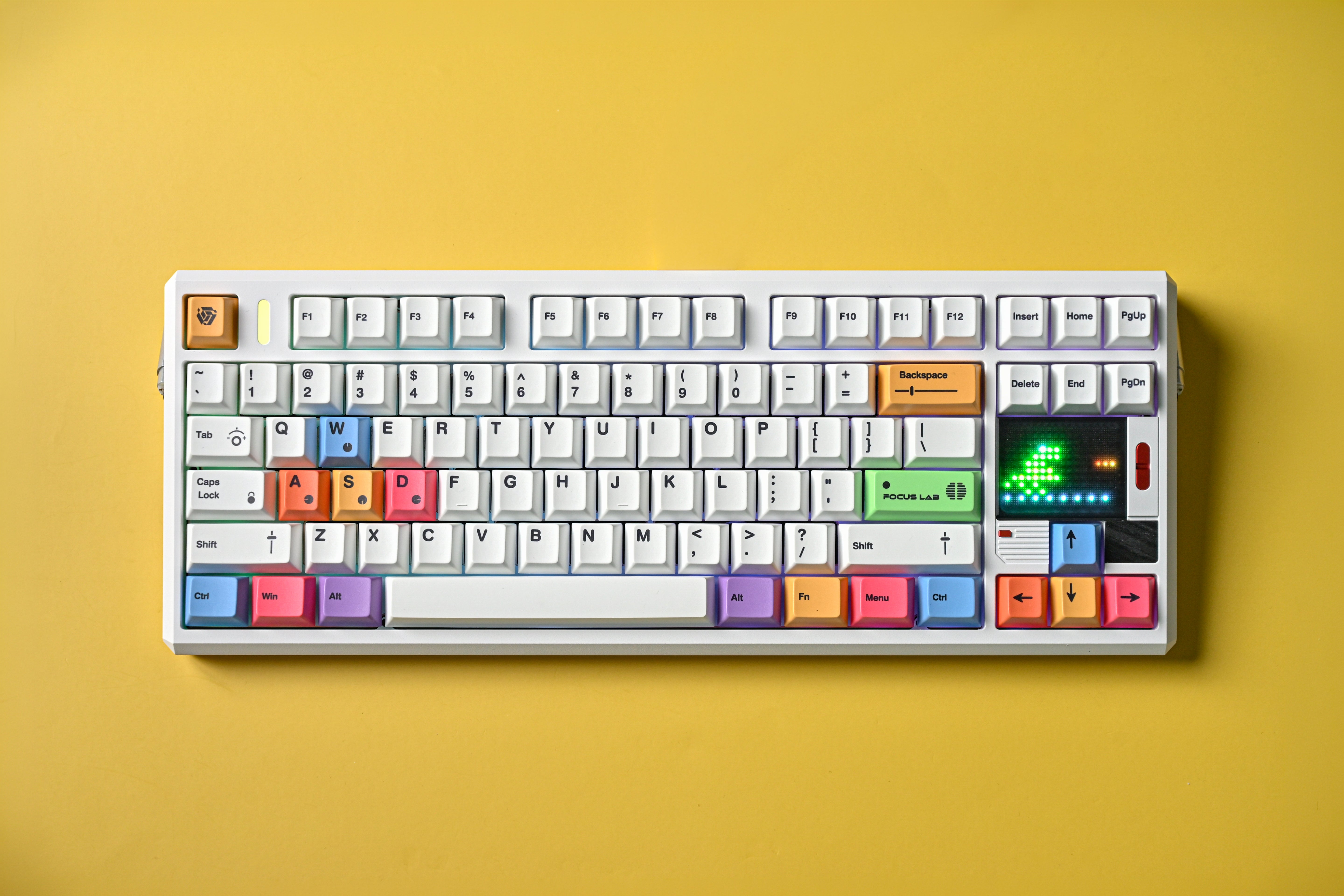

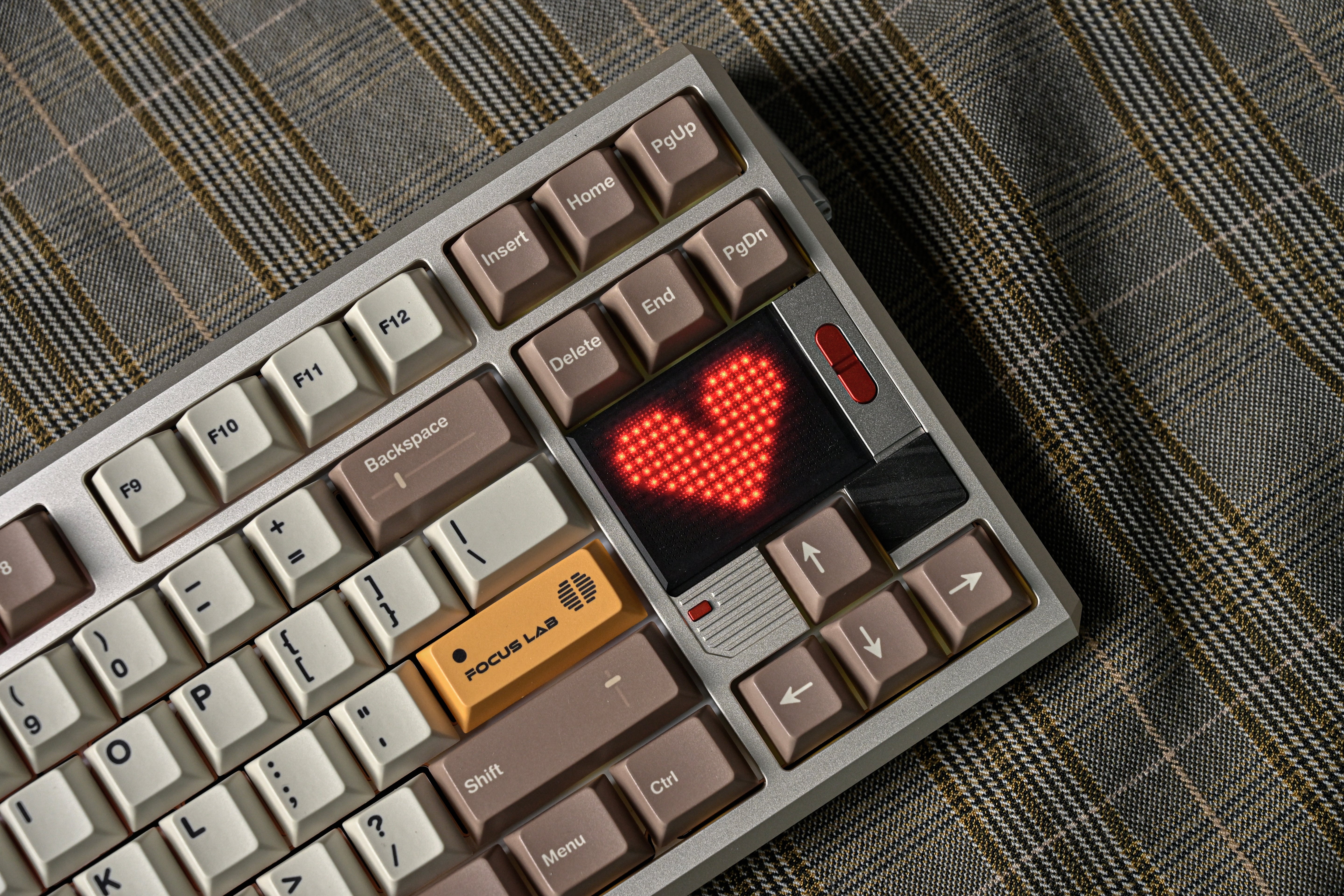

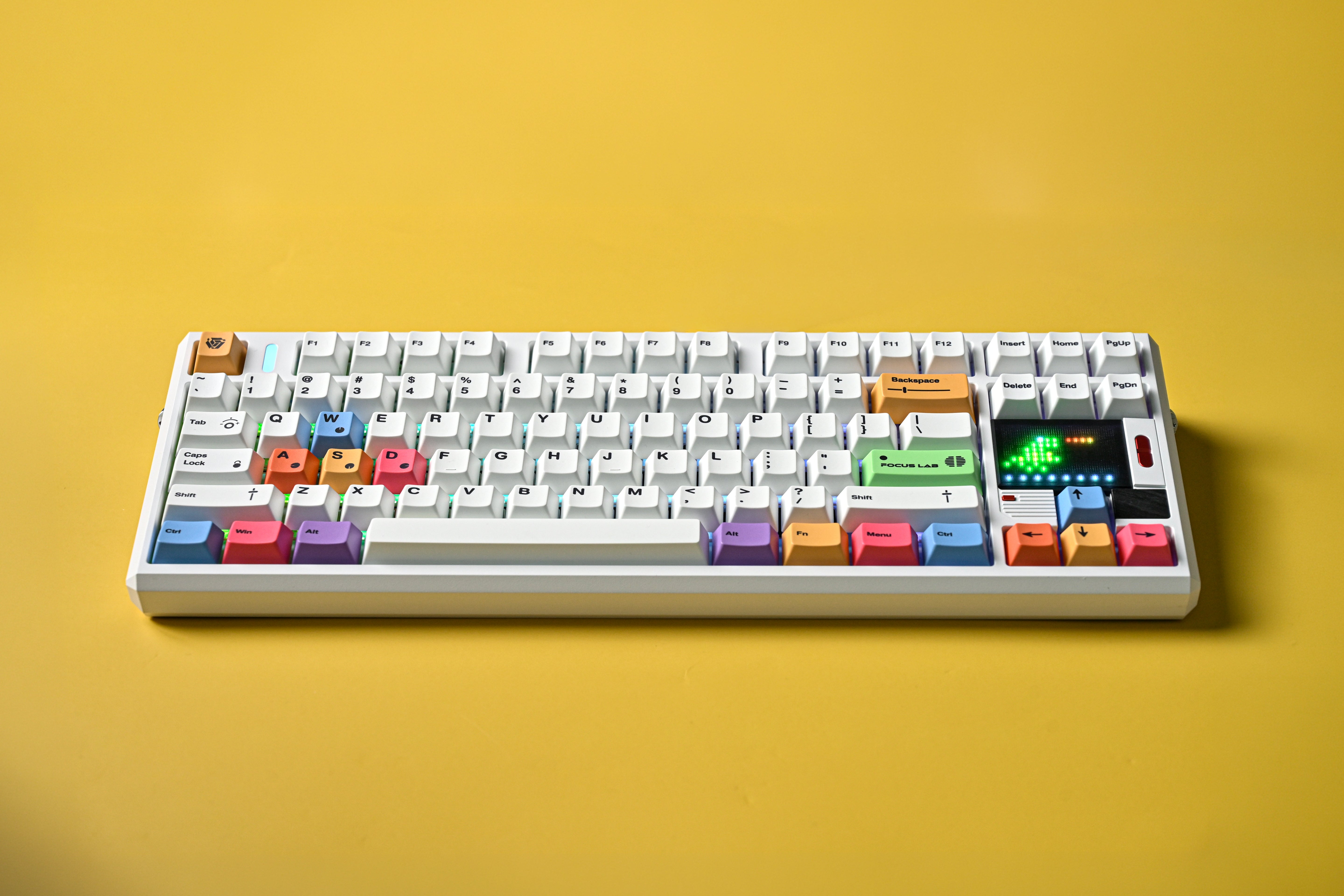

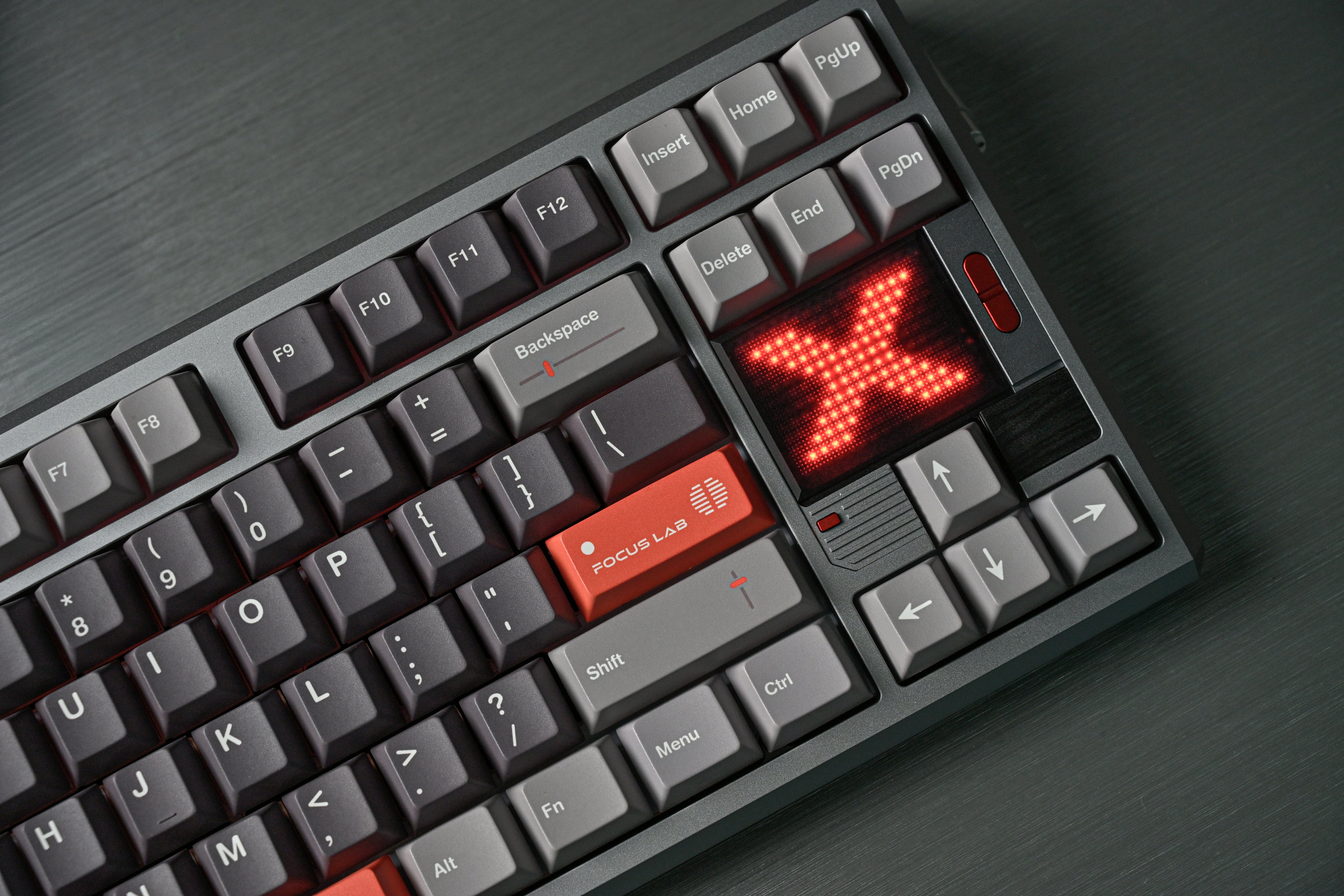

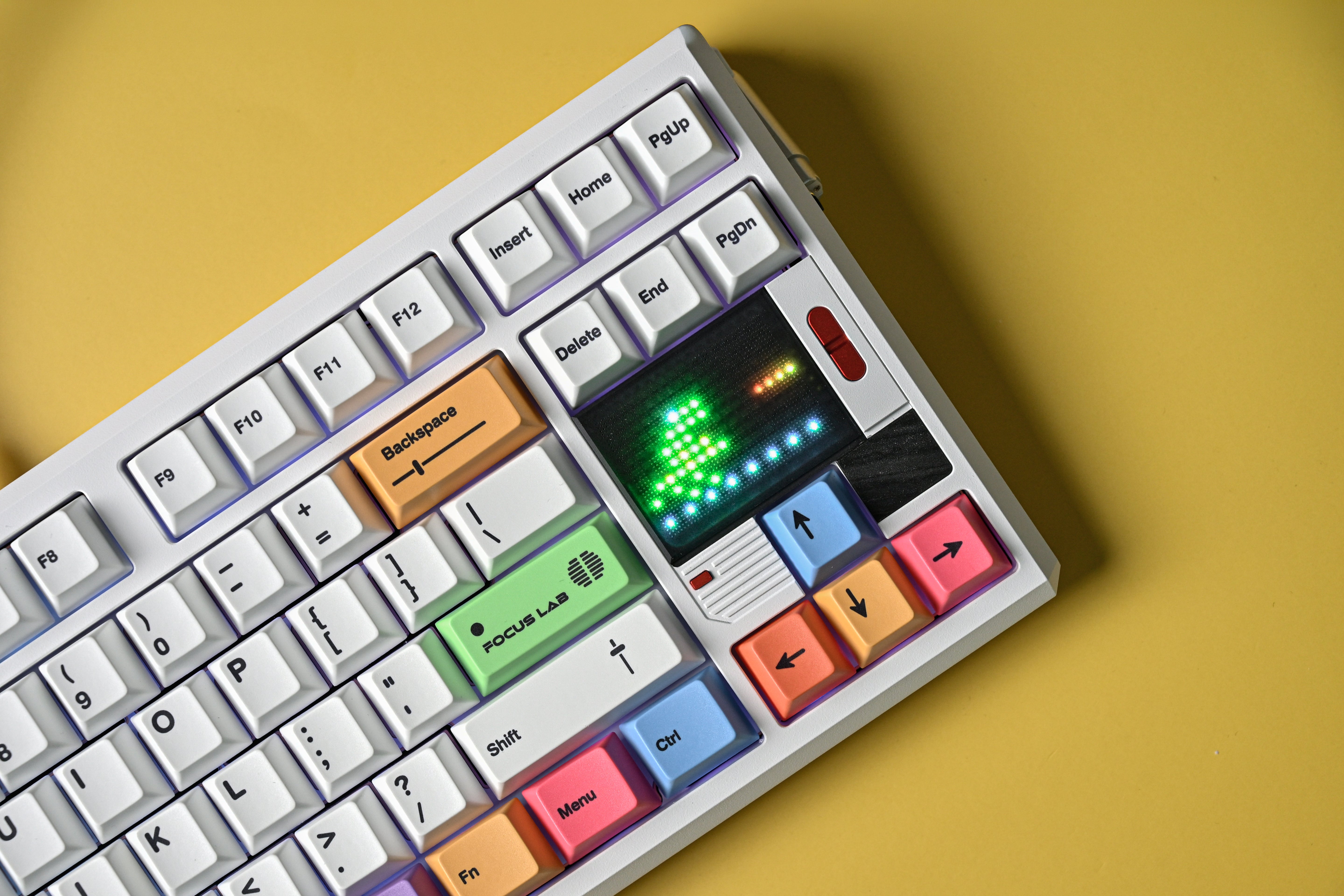

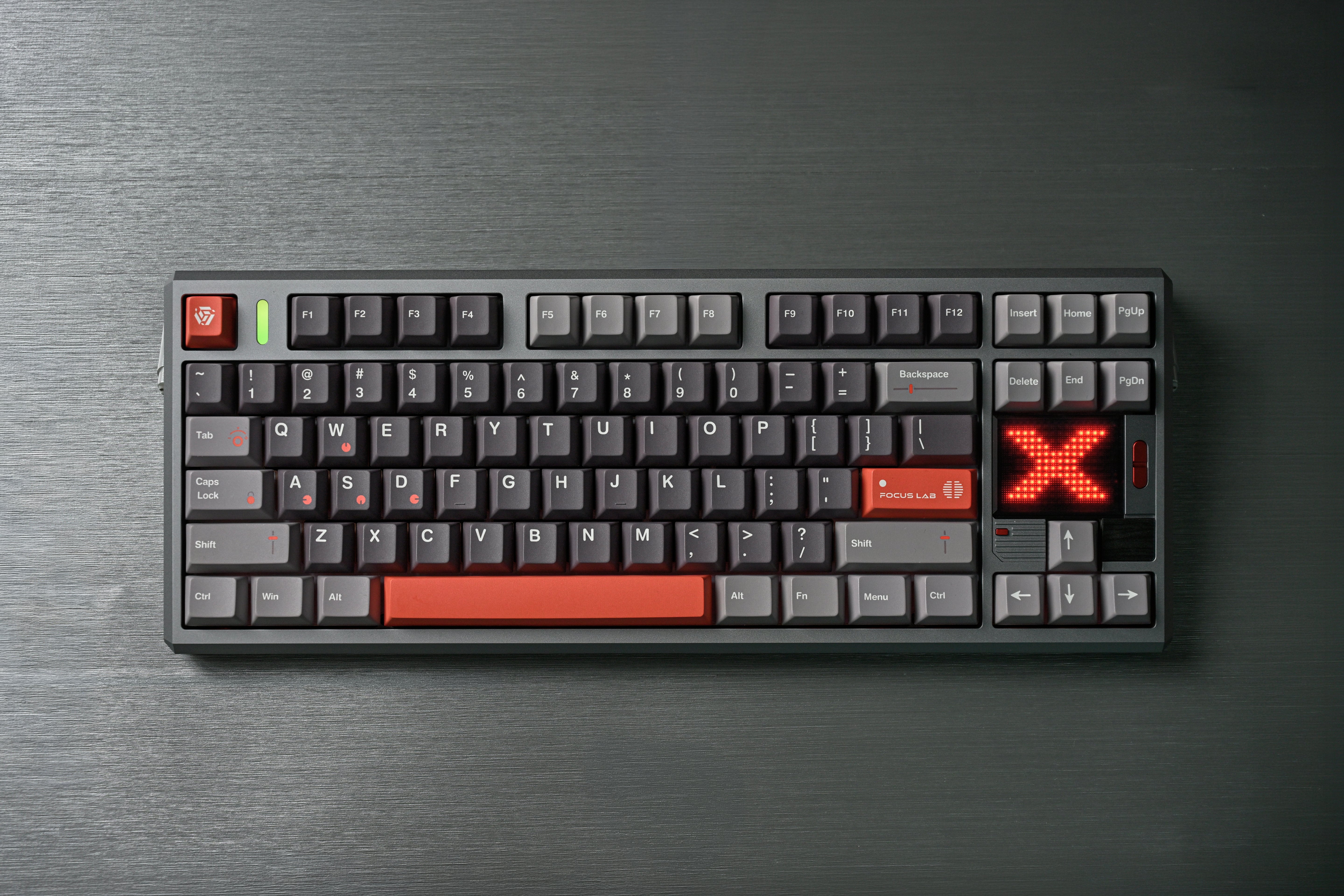

16x12 Pixel Dot Matrix / Built-in Animations / Maxed-Out DIY Customization

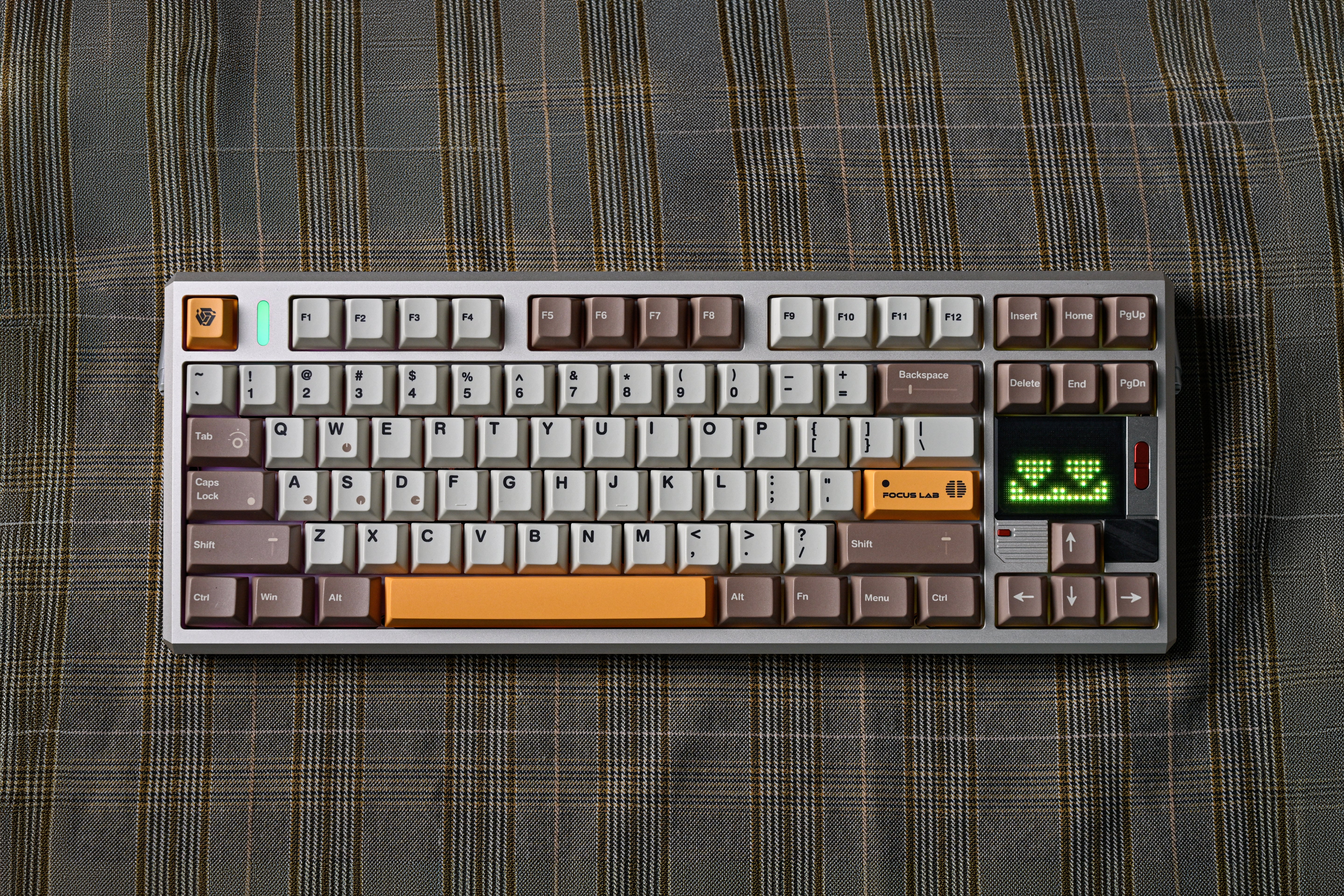

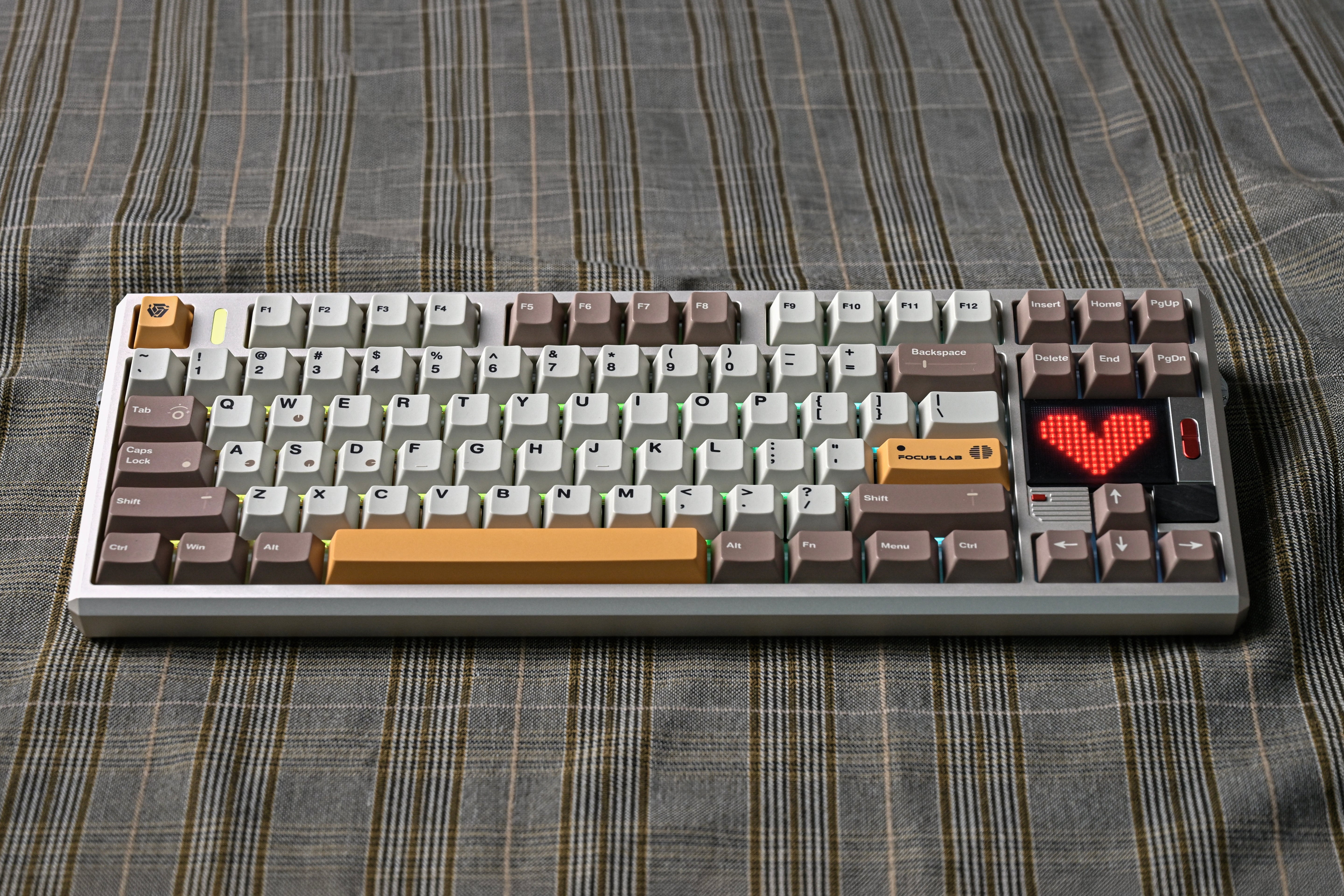

Paired with Classic OG-Style Keycaps

"Enrong OEM" — No need to buy custom keycaps separately.

Finer Surface Finish

220-Mesh Matte Anodization / Ultra-Fine Powder Coating

Basic Specifications

• Model: CTRL87

• Dimensions: 365 × 147 × 35 mm

• Net Weight: 2.1 kg

• Material: 6063-T6 Aluminum Alloy

• Surface Finish: 220-Mesh Anodized / Ultra-Fine Powder Coating

• Solution/Chip: Dual 8K Low Latency

Core Specifications

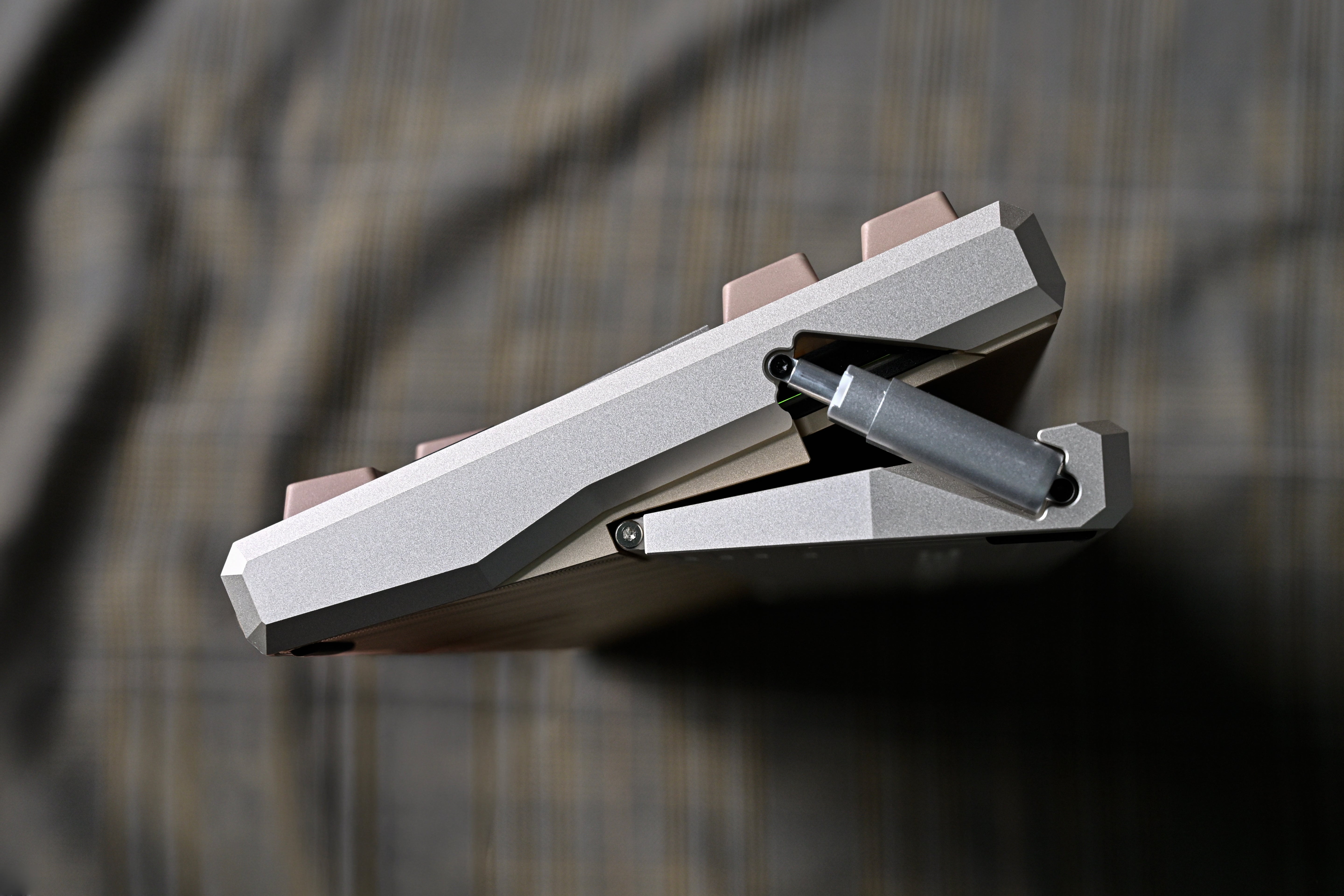

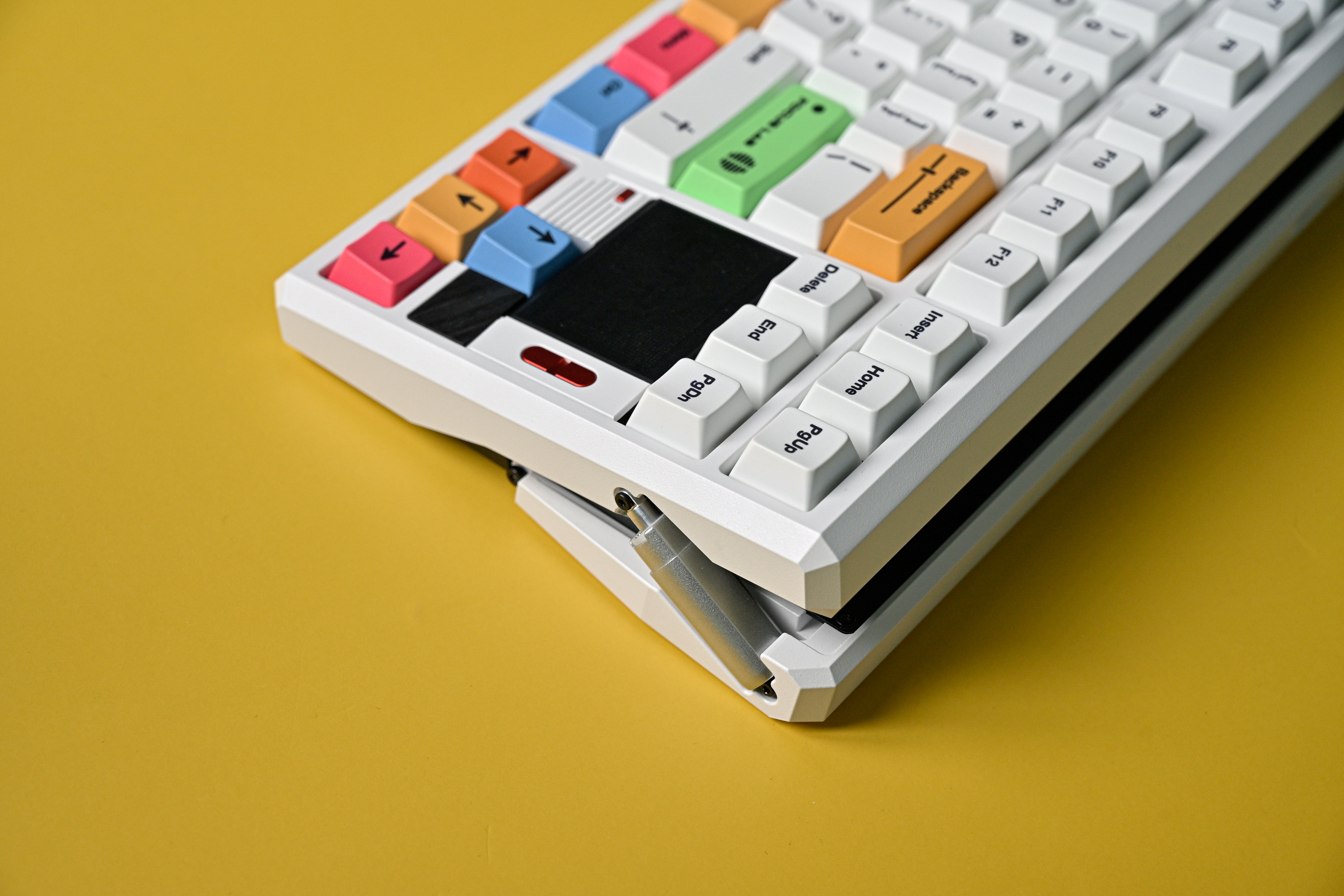

• Elevation System: 7–20° Electric Stepless Adjustment

• Front Height: 18.5 mm

• Rear Height: 35 mm

• Battery Capacity: 8000 mAh Lithium Battery

• Plate: FR4

• Sound Dampening: 5 Layers

• Connection Modes: Tri-Mode (Wired / 2.4GHz / Bluetooth)

• Driver/Software: Web-Based Driver

• Switches: HMX Custard (Thocky/Muffled) / HMX Taro (Crisp/Clacky)

• Keycaps: Enrong OEM PBT 5-Side Dye-Sublimation

• Screen: Magnetic Dot Matrix Screen (16×12 Pixels)

Power switch ON/OFF

• Remove the magnetic cover plate to reveal the power toggle switch.

Charging Instructions

• FOCUS LAB products are designed based on standard USB protocols.

• Charging voltage is 5V. Please charge using a computer USB port. Do NOT use fast chargers or wall adapters directly, as this may burn out the battery.

• Prevent any liquids from entering the device during use to avoid short circuits and electrical failures.
