Cannonkeys - Sat75X Barebone Kit

Add-on parts page is here.

Refreshed,
Reimagined,
Upgraded.

Redesigned internals. Refreshed in light and durable polycarbonate.



Functional Brilliance

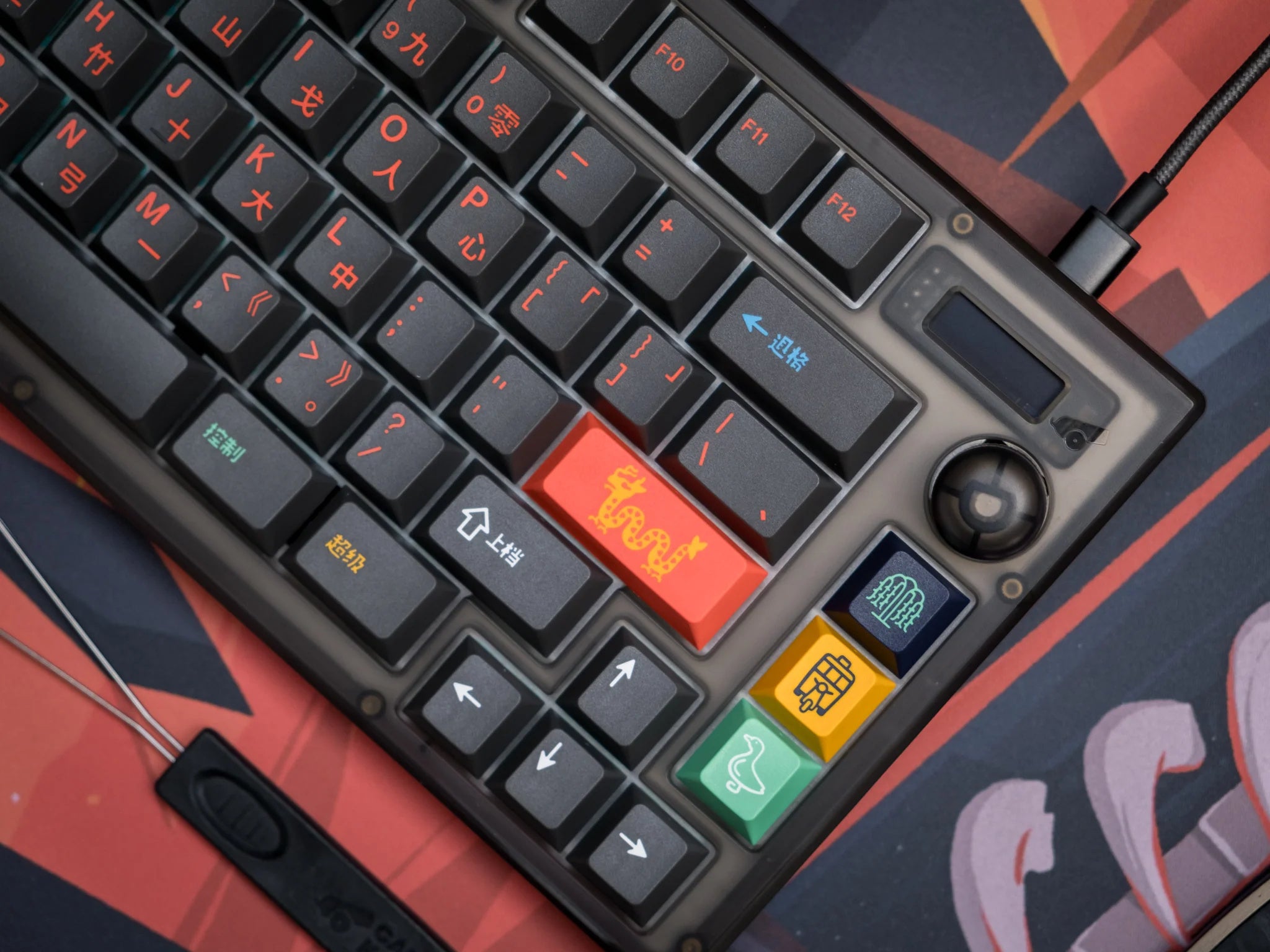

Real time clock, layer & modifier indicators, encoder mode, and more available at your finger tips.



Quality Finish

Several iterations and improvements have allowed us to get a high quality finish on our polycarbonate.



Revised PCB

The custom QMK/VIA backwards compatible hotswap PCB features a hotswap OLED and pre-soldered encoder for a smooth building experience.

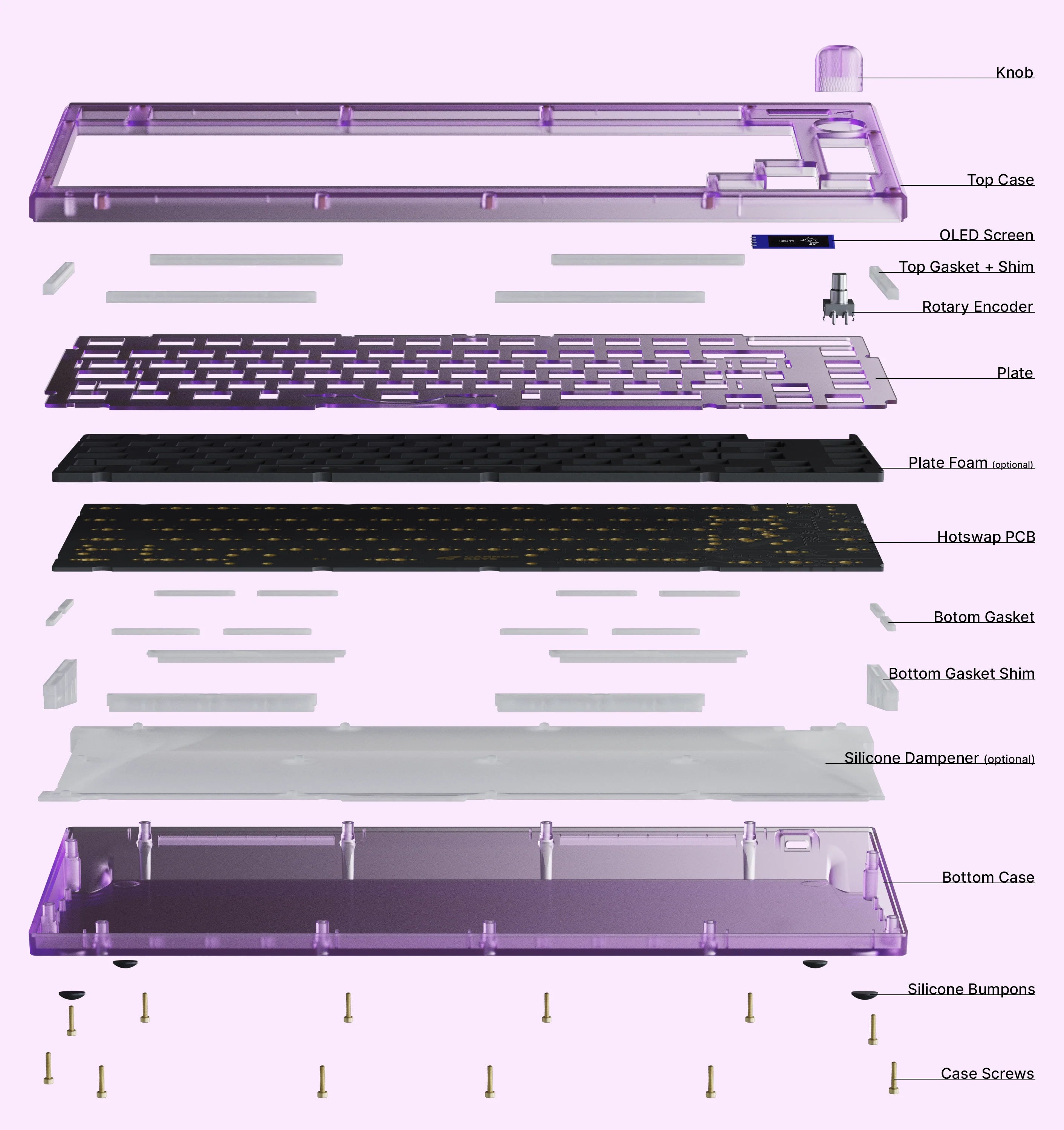

In The Box

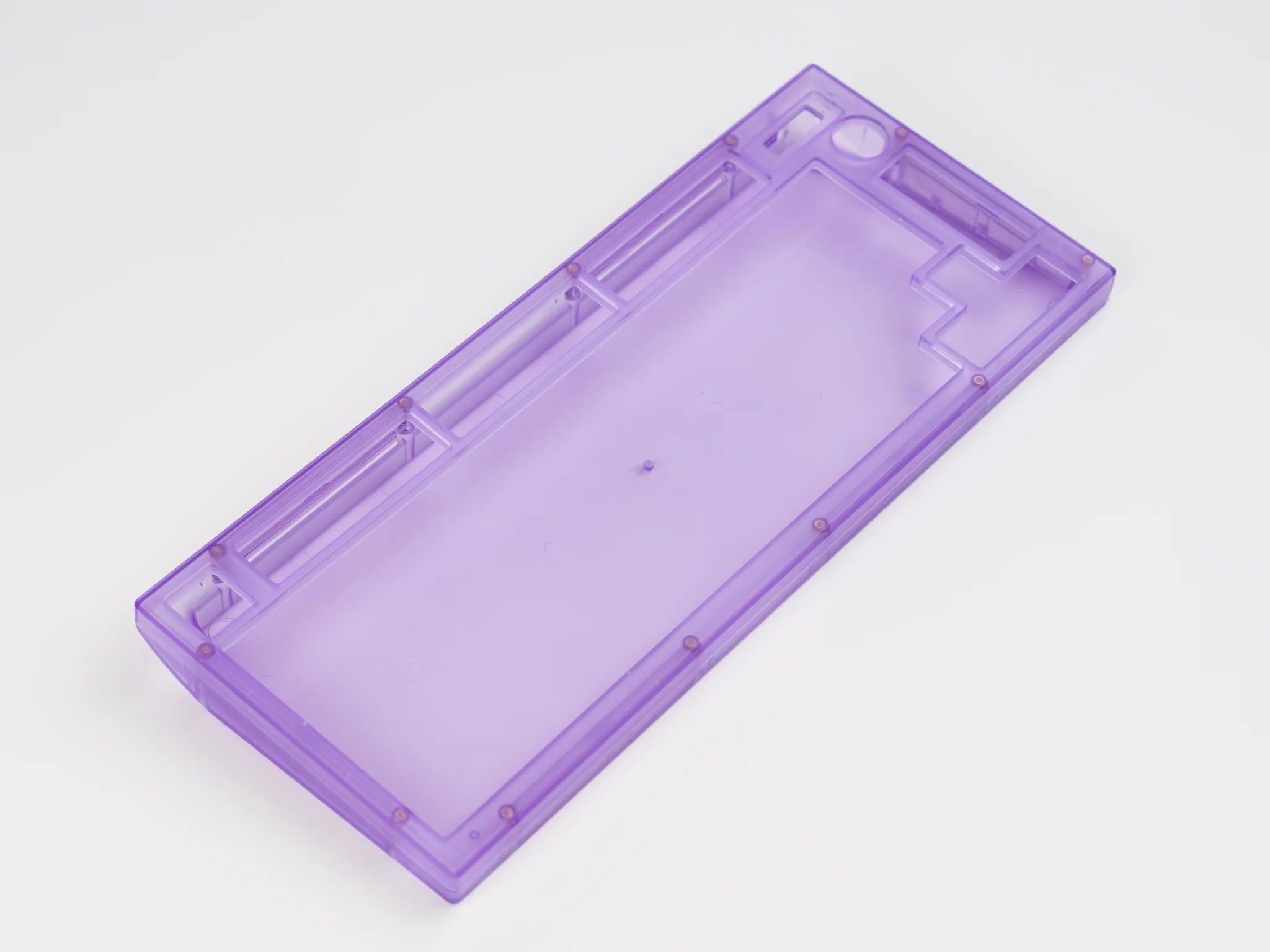

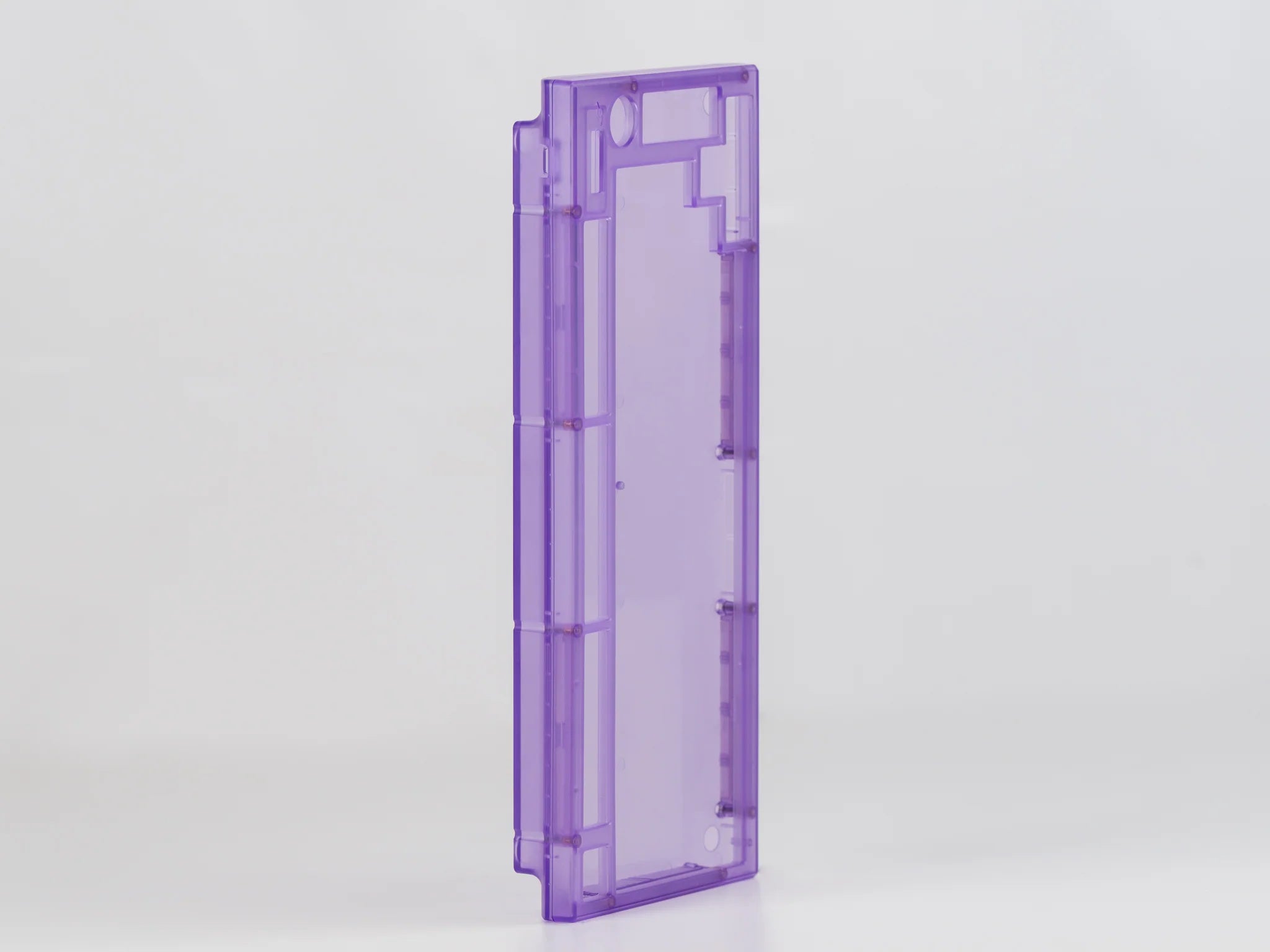

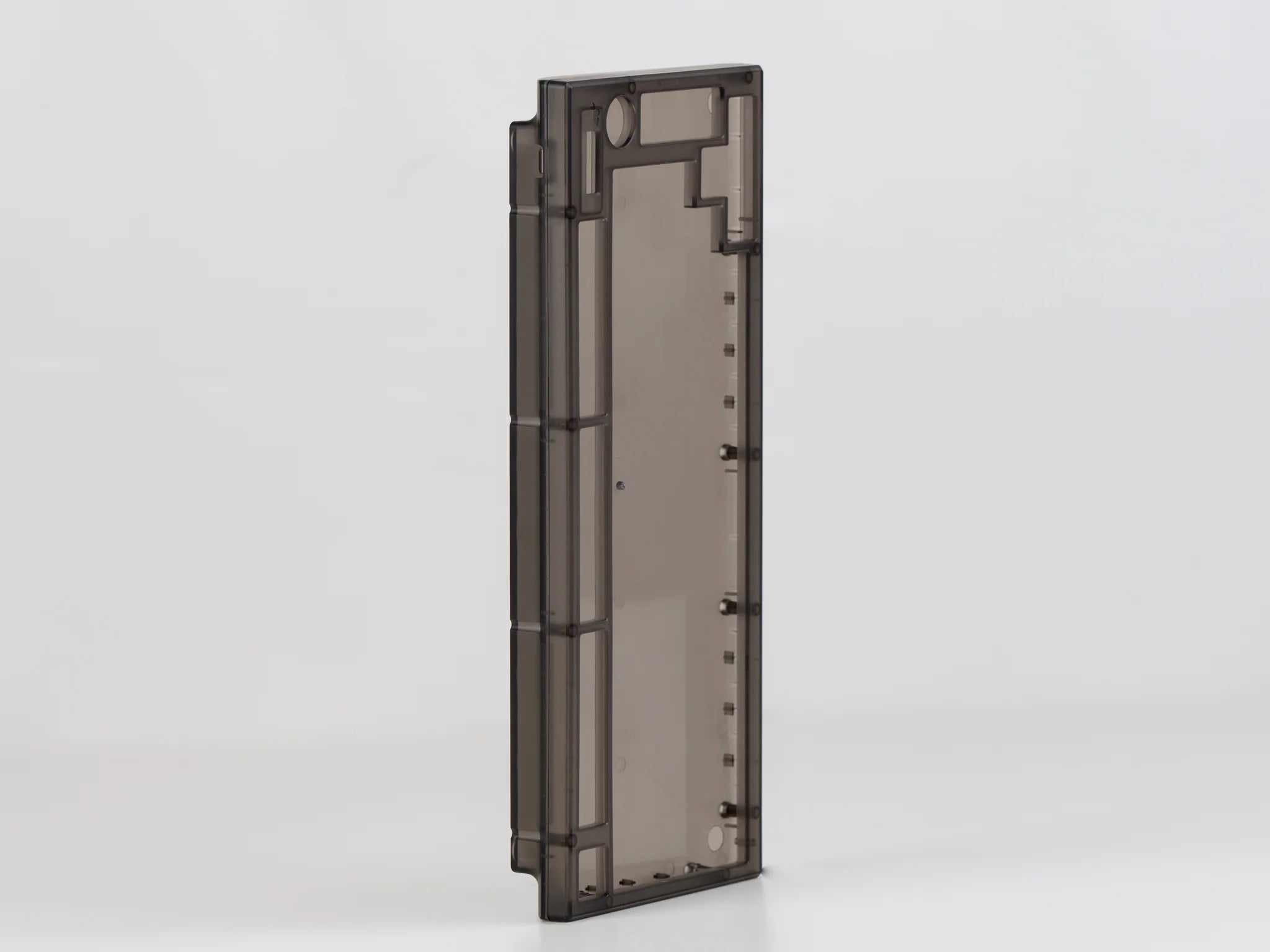

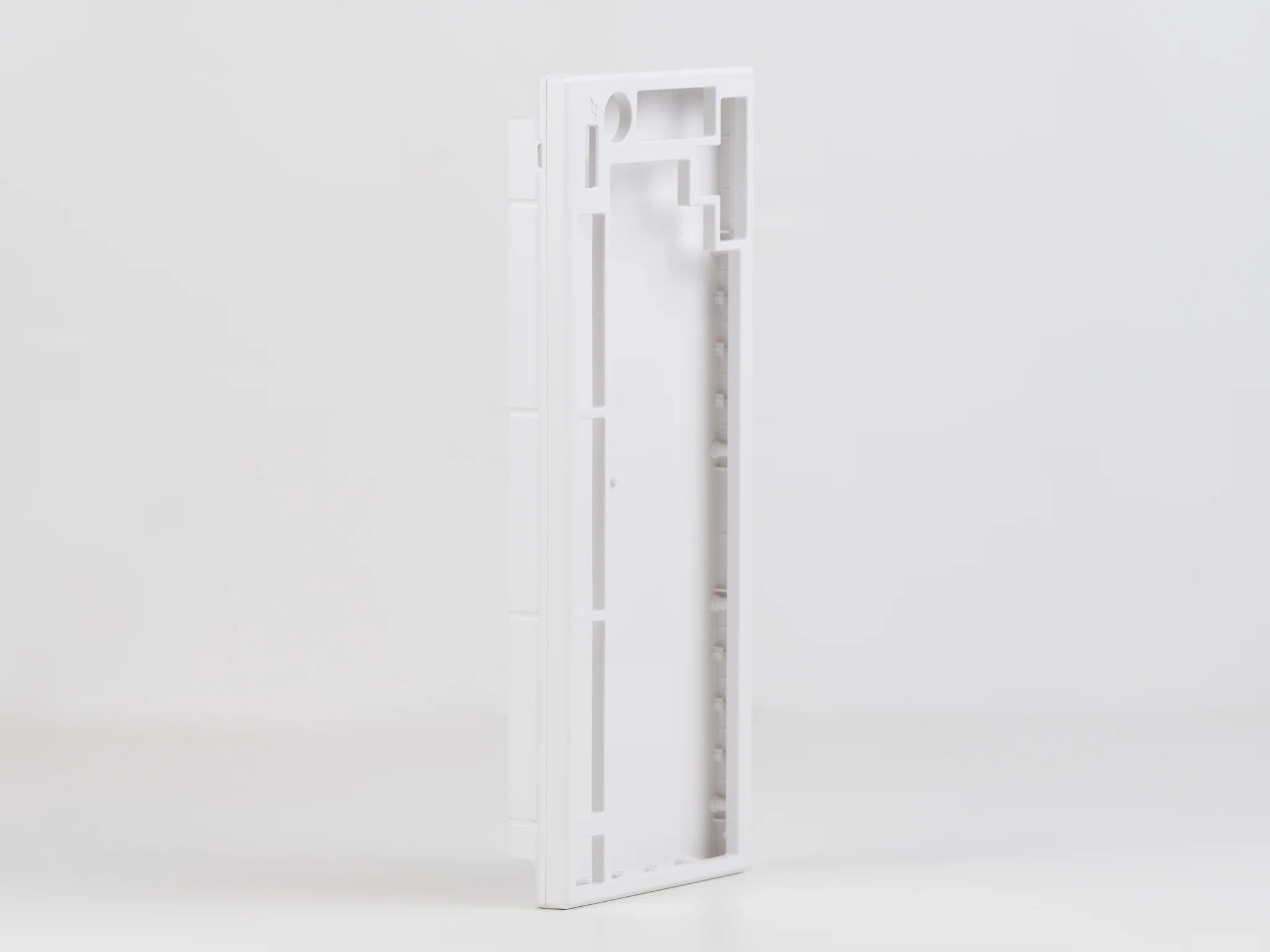

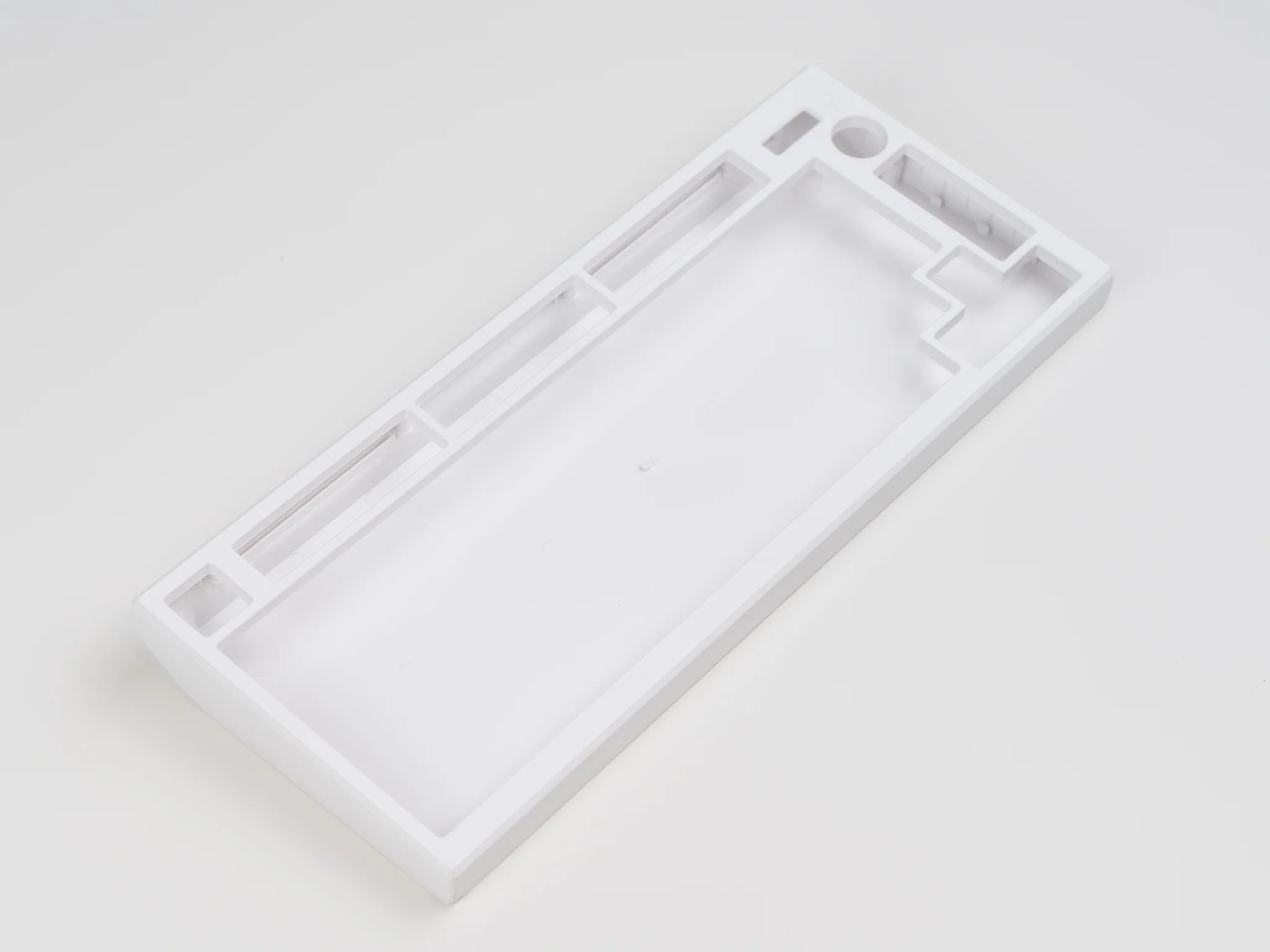

• Top and bottom case
• Knob in chosen case color
• Top and bottom gasket chips set pre-installed into case
• Clear PC plate (6.25u fixed)

• Hotswap PCB with pre-soldered encoder, OLED header, and 2 standoffs

• Hotswappable white OLED screen

• Silicone gaskets pre-installed into case
• Clear silicone feet

• Switch / keycap puller

• Cherry clip-in stabilizers

• Screws and hardware

• Braided straight USB-C cable

• Carrying case




Specifications

• Typing angle: 8°
• Front height: 18.2mm
• Size: 108.8mm * 292.9mm
• Weight: 1.53kg after build
